Products Content

Flag female insulating joint (nylon)

Flag female insulating joint (nylon)

 Max current:22-18 A.W.G :10A   16-14 A.W.G :15A     12-10 A.W.G :24A

    Max stress: 105℃   600V   Material:Copper   Material of insulating bush:nylon   Thickness of Material:0.4mm

IE
Spec

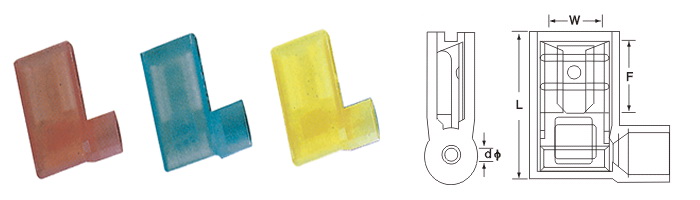

Dimension(mm)
Section of lead A.W.G
W
F
L
dΦ
FLDNY 1.25 - 250
0.8 x 6.35
6.6
7.6
16.0
1.7
22 - 18 A.W.G   0.5 - 1.5 mm²
FLDNY 2 - 250
0.8 x 6.35
6.6
7.6
16.0
1.7
16 - 14 A.W.G   1.5 - 2.5 mm²
FLDNY 5.5 - 250
0.8 x 6.35
6.6
7.6
16.0
1.7
12 - 10 A.W.G   4 - 6 mm²
