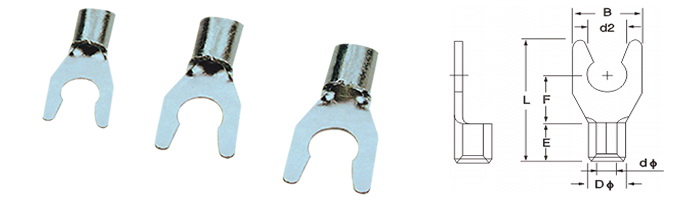

Snapeclose Furcated Naked Terminal

Snapeclose Furcated Naked Terminal



Imax = 19A   Material:Copper  Thickness of Material:0.75mm

ITEMNO
Dimension of bolt
d2(mm)
Dimension(mm)
Section of lead(mm²)
B
F
L
E
DΦ
dΦ
LSNB 1.25 - 3.5
3.7
6.4
6.5
16.0
4.8
3.4
1.7
22 - 16 A.W.G

0.5 - 1.5  mm²

LSNBS 1.25 - 4
4.3
7.2
LSNBL 1.25 - 4
4.3
8.1
LSNBS 1.25 - 5
5.3
8.1
LSNBL 1.25 - 5
5.3
9.5

  Imax = 27A   Material:Copper  Thickness of Material:0.8mm

ITEMNO
Dimension of bolt
d2(mm)
尺  寸(mm)
Section of lead(mm²)
B
F
L
H
DΦ
dΦ
LSNB 2 - 3.5
3.7
6.0
6.5
16.0
4.8
4.1
2.3
16 - 14 A.W.G

1.5 - 2.5  mm²

LSNBS 2 - 4
4.3
7.2
LSNBL 2 - 4
4.3
8.1
LSNBS 2 - 5
5.3
8.1
LSNBL 2 - 5
5.3
9.5

Imax = 48A   Material:Copper  Thickness of Material:1.0mm

ITEMNO
Dimension of bolt
d2(mm)
尺  寸(mm)
Section of lead(mm²)
B
F
L
H
DΦ
dΦ
LSNB 5.5 - 3.5
3.7
8.3
7.5
19.5
6.0
5.6
3.4
12 - 10 A.W.G

  4 - 6     mm²

LSNB 5.5 - 4
4.3
8.3
LSNB 5 - 5
5.3
9.0
LSNB 5 - 6
6.4
12.0
12.0
24.5
