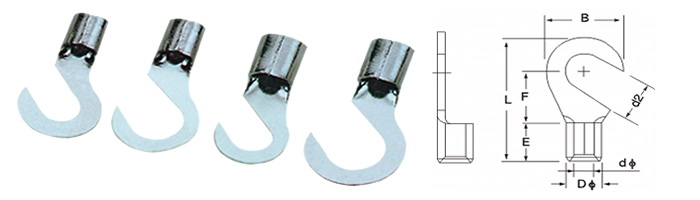

Hooked Naked Terminal
|
Imax = 19A Material:Copper Thickness of material:0.75mm |
|
ITEMNO |
BoltDimension d2(mm) |
Dimension (mm) |
Section of lead(mm²) |
|
B |
F |
L |
E |
DΦ |
dΦ |
|
HNB 1.25 - 3.5 |
3.7 |
8.0 |
7.0 |
15.8 |
4.8 |
3.4 |
1.7 |
22 - 16 A.W.G
0.5 - 1.5 mm² |
|
HNB 1.25 - 4 |
4.3 |
|
HNB 1.25 - 5 |
5.3 |
|
HNB 1.25 - 6 |
6.4 |
11.6 |
11.0 |
21.8 |
|
Imax = 27A Material:Copper Thickness of material:0.8mm |
|
ITEMNO |
BoltDimension d2(mm) |
Dimension (mm) |
Section of lead(mm²) |
|
B |
F |
L |
E |
DΦ |
dΦ |
|
HNB 2 - 3.5 |
3.7 |
8.5 |
7.8 |
16.8 |
4.8 |
4.1 |
2.3 |
16 - 14 A.W.G
1.5 - 2.5 mm² |
|
HNB 2 - 4 |
4.3 |
|
HNB 2 - 5 |
5.3 |
8.1 |
7.3 |
|
HNB 2 - 6 |
6.4 |
9.5 |
11.0 |
21.8 |
|
Imax = 48A Material:Copper Thickness of material:1.0mm |
|
ITEMNO |
BoltDimension d2(mm) |
Dimension (mm) |
Section of lead(mm²) |
|
B |
F |
L |
E |
DΦ |
dΦ |
|
HNB 5.5 - 3.5 |
3.7 |
7.2 |
6.1 |
15.7 |
6.0 |
5.6 |
3.4 |
12 - 10 A.W.G
4 - 6 mm² |
|
HNB 5.5 - 4 |
4.3 |
9.5 |
9.5 |
19.8 |
|
HNB 5.5 - 5 |
5.3 |
|
HNB 5.5 - 6 |
6.4 |
12.0 |
10.3 |
22.5 |
|
HNB 5.5 - 8 |
8.4 |
15.0 |
13.5 |
27.0 |
|
Imax = 62A Material:Copper Thickness of material:1.2mm |
|
ITEMNO |
BoltDimension d2(mm) |
Dimension (mm) |
Section of lead(mm²) |
|
B |
F |
L |
E |
DΦ |
dΦ |
|
HNB 8 - 8 |
8.4 |
15.0 |
13.8 |
29.5 |
8.5 |
7.2 |
4.5 |
8A.W.G
8mm² |
