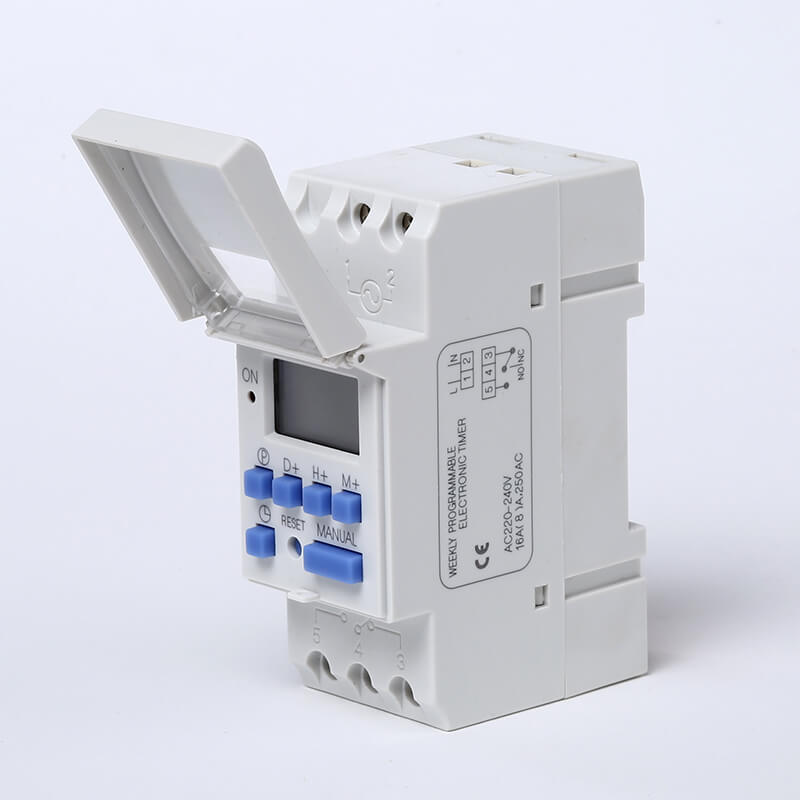

THC15A Din rail Digital time switch


The THC15A serives are cost-effective choice,there are very diverse features and flexible installation, and a wide range of applications including commercial and industrial lighting and equipment control. Welcome to compare with other companies.


Description

Description Applications
●  Din rail weekly program Digital time switch Light of billboard or showcase control
●  1 channel Air-condition or Commercial Refrigeration
●  24-Hour or 7-day applications Pumps/Motor/Fan Control
●  20 ON/OFF program Hydroponic Systems
●  20 pulse programs(1s~59m59s) Wastewater Treatment Systems
●  Countdown program(1s~59m59s) Generator Exercising
●  Calculated switching times Boilers / Heater Control
●  Integrated operating hour counter Pool & Spa
●  Auto-correct time(-30 sec ≤△t≤30 sec) Ventilation
●  Built-in lithium battery,power failure memory Hot Water Pump Circulation
●  Preset date and time Lighting Panel Control
●  Fully operable without mains connection Landscape Lighting
●  Permanent switching ON/OFF Bug and Pest Control Systems
●  12/24 hour format conversion Aerobic Waste Water Systems
●  Screw terminals General Electrical Circuits

Technical data

Product Type THC15A
Number of  ON / OFF programs 20
Number of pulse programs 20
Range of pulse time 1s~59m59s
Range of countdown 1s~99m59s
Width 2 modules
Installation type Din rail
Type of contact Changeover contact
Switching output Phase-independent
Method of connection terminal Screw terminals
Power reserve 3 years
Switching capacity at 250 V AC, cos φ = 1 16A
Switching capacity at 250 V AC, cos φ = 0,6 10A
Incandescent/halogen lamp load 230V 2600W
Energy saving lamps 170W
LED lamp < 2 W 30W
LED lamp 2–8 W 100W
LED lamp > 8 W 120W
Fluorescent lamp load (electronic ballast) 650W
Fluorescent lamp load (conventional) not corrected 1000VA
Fluorescent lamp load (conventional)            series-corrected 1000VA
Fluorescent lamp load (conventional)
parallel-corrected 		730 VA 80uF
Time accuracy at 25 °C typical ± 2 s/day (quartz)
Consumed power 4VA
Test approval CE
Type of protection IP 20
Protection class II according to EN 60 730-1
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Work  temperature： -10 ~ +50 °C (non-icing）
Ambient humidity： 35～85﹪RH

Product selection

Product Type Voltage Frequency Terminal Switching capacity
THC15A-220/50Hz-16A 220V 50Hz 5 16A
THC15A-220/60Hz-16A 220V 60Hz 5 16A
THC15A-110/50Hz-16A 110V 50Hz 5 16A
THC15A-110/60Hz-16A 110V 60Hz 5 16A
THC15A-12V-16A AC/DC 12V  50/60Hz for AC 5 16A
THC15A-24V-16A AC/DC 24V  50/60Hz for AC 5 16A
THC15A-220/50Hz-3P-20A 220V 50Hz 3 20A
THC15A-220/50Hz-5P-20A 220V 50Hz 5 20A
THC15A-220/60Hz-3P-20A 220V 60Hz 3 20A
THC15A-220/60Hz-5P-20A 220V 60Hz 5 20A
THC15A-110/50Hz-3P-20A 110V 50Hz 3 20A
THC15A-110/50Hz-5P-20A 110V 50Hz 5 20A
THC15A-110/60Hz-3P-20A 110V 60Hz 3 20A
THC15A-110/60Hz-5P-20A 110V 60Hz 5 20A
THC15A-12V-20A AC/DC 12V AC 50/60Hz 5 20A
THC15A-24V-20A AC/DC 24V AC 50/60Hz 5
